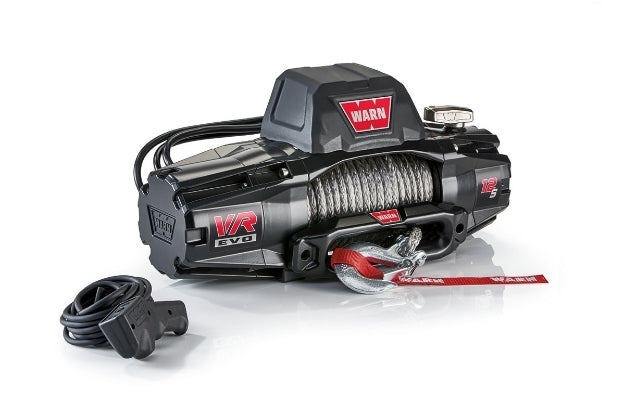

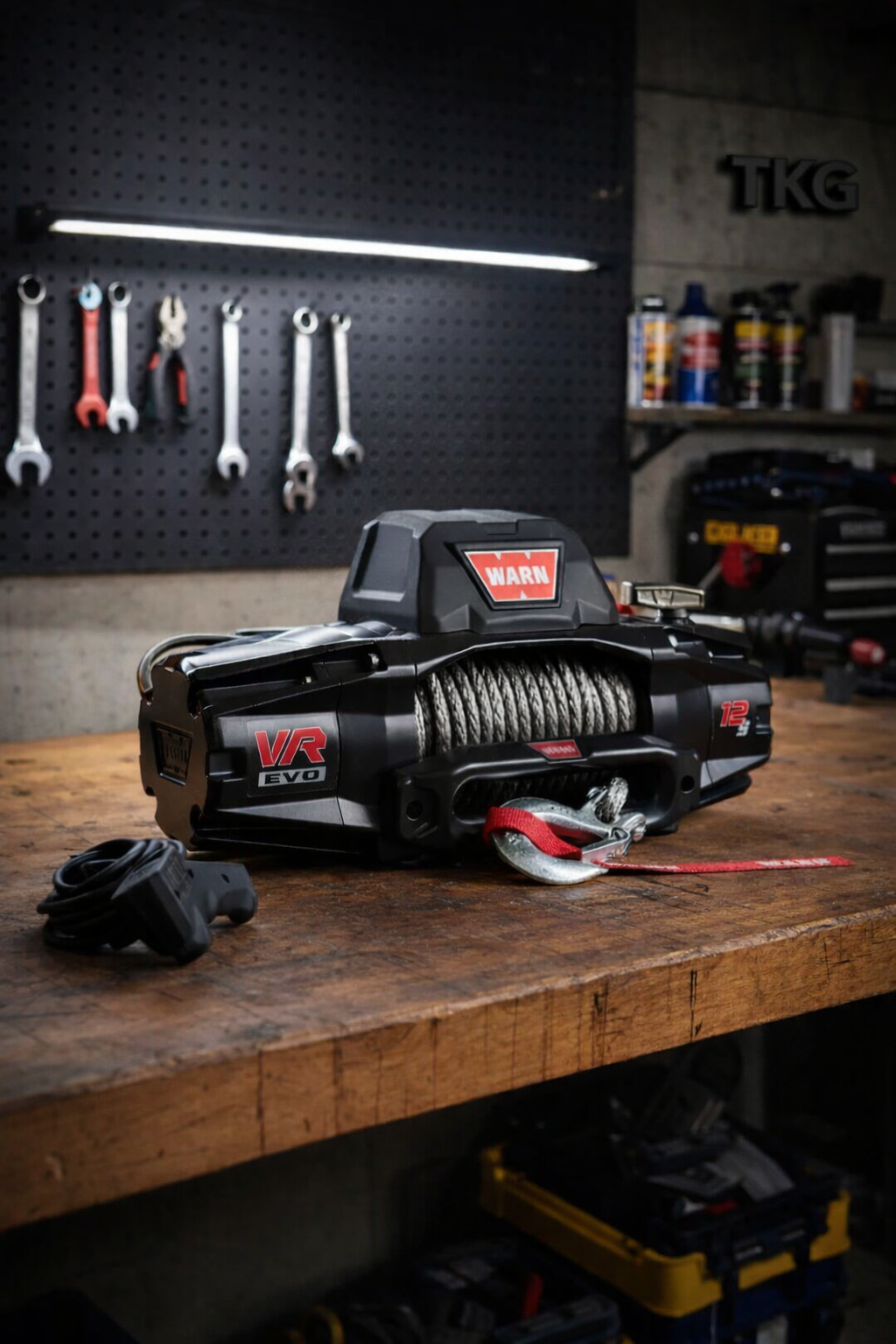

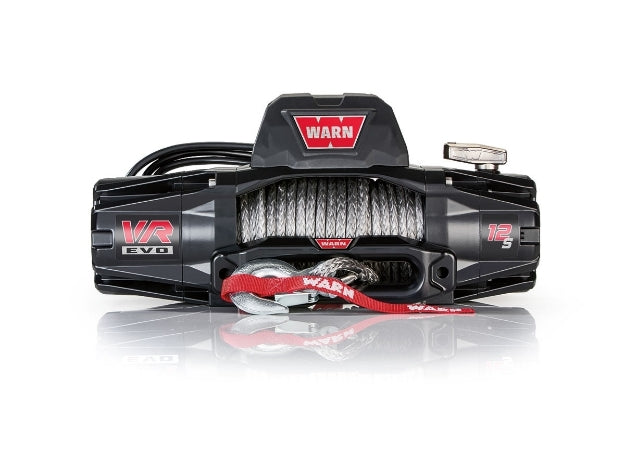

Warn VR 12-S EVO 12,000lb Recovery Winch with Synthetic Rope

Free Shipping!

Free Shipping Applies to Major Metro Areas

Regional & Remote Areas May Incur Additional Freight Charges

*Free shipping is limited to major metropolitan areas. For regional or remote locations, additional shipping charges may apply due to carrier service limitations or access requirements. We will contact you to confirm any additional costs where applicable.

Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12-S features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a 2-in-1 wired and wireless remote. With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw

• IP68-rated waterproof winch construction keeps the elements out

• High-performance Albright contactor delivers maximum reliability

• Control packs can be relocated for low-profile installations

• Durable, one-piece cast-aluminum tie-plate for added strength and durability

• 2-in-1 wired and wireless remote

• Limited lifetime warranty for mechanical parts and 7 years on the electrical

Warn VR Evo 12-S Winch Specifications:

Part Numbers: 103255 (VR Evo 12-S)
Rated Line Pull: 12000 lbs (5443 kgs)
Motor: 12V DC, Series Wound™
Electrical Controls: Albright Contactor
Remote Control: 2-in-1 plug-in remote with wireless capability and 3.5m lead
Gear train: 3-Stage Planetary
Gear Ratio: 234:1
Clutch (freespooling): Rotating Ring Gear Clutch
Brake: Spring Brake
Drum Diameter/Length: 6.73cm/23cm
Weight: Shipping Synthetic - 32.84 kgs
Rope: Synthetic - 9.5mm x 27.4m
Fairlead: Synthetic - Die Cast Hawse
Recommended Battery: 650 CCA min. for winching
Battery Leads: 25mm x 2m
Standard Mounting Bolt Pattern: 254mm x 114.3mm

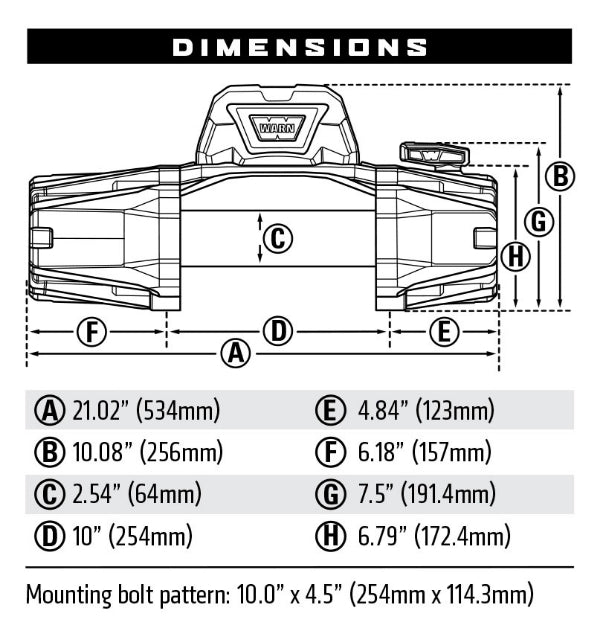

Overall Winch Dimensions: 534mm L x 160.5mm D x 256mm H
Finish: Powder coat finish over primer undercoat
Warranty: Limited Lifetime mechanical & 7 year electrical
Includes Mounting Hardware:    Yes
Color:    Black
Drum Material:    Steel
Max Line Pull/ Line Speed:    12,000 pounds / 4.0 feet per minute
Max Amp Draw/ Line Pull:    396 Amps / 12,000 pounds
